H-2834P

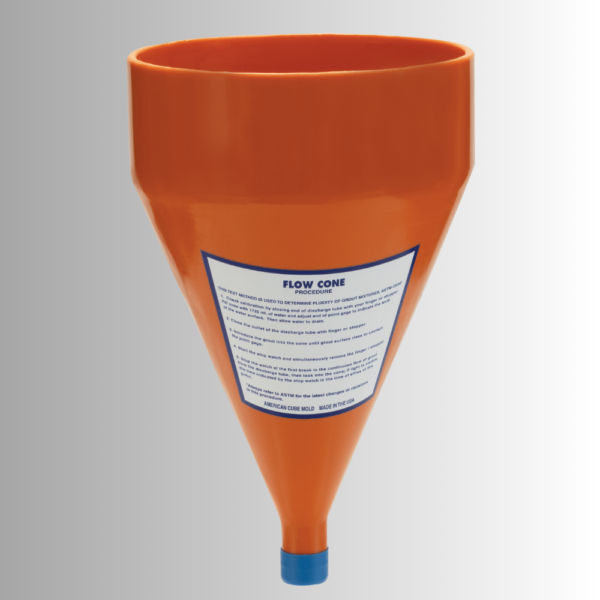

Humboldt ASTM Grout Flow Cone Plastic, with 0.5″ (13mm) Orifice
Supports the following standards: ASTM C939
This cone is used to determine the time of efflux of a specified amount of fluid hydraulic cement grout, by allowing it to flow through a standardized orifice. It can be used for with preplaced-aggregate (PA), but can also be used for other fluid grouts. The test method described in ASTM C939 determines the flowability by measuring the time of discharge of a 1.725L sample of grout as it is passed through a 0.5″ (12.7mm) orifice at the bottom of the cone.
The Humboldt’s H-2834P Cone complies with ASTM C939, is comprised of a plastic cone with a top ID of 7″ (178mm) and a orifice at the bottom of 0.5″ (12.7mm).
Alternative model:
H-2835P – Plastic Flow Cone with 0.75″ (19mm) orifice
Adjustable point gauge assembly sold separately H-2834P.7.
