Description
H-3945

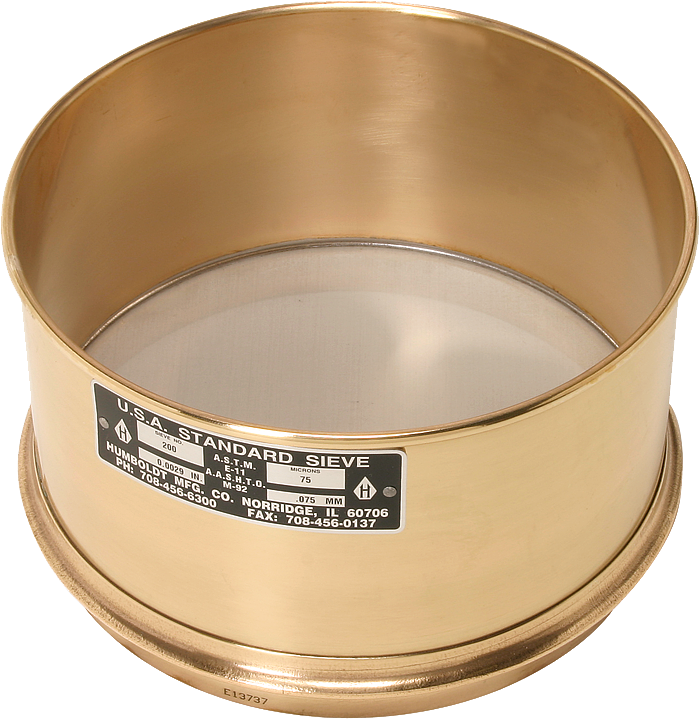

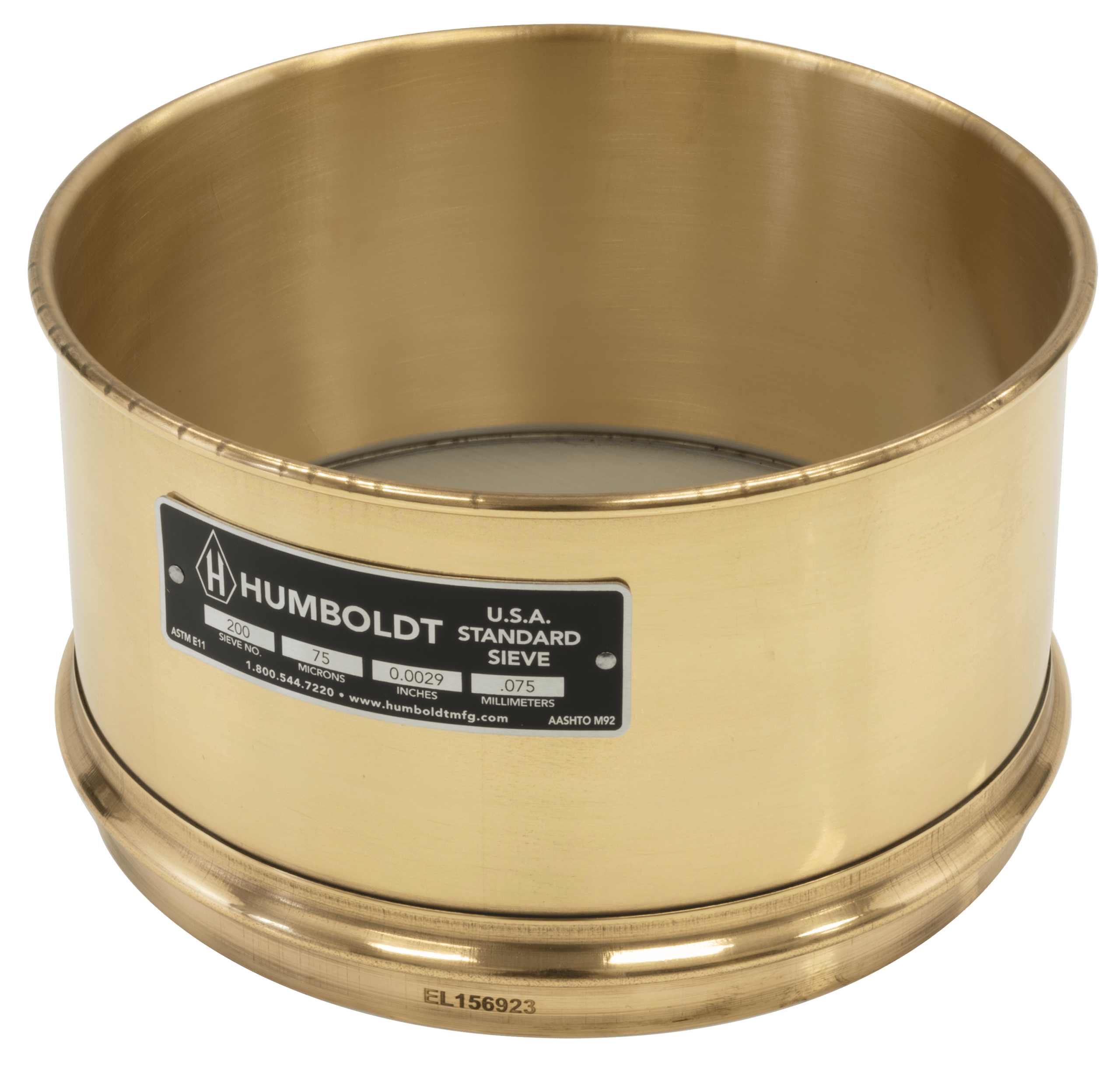

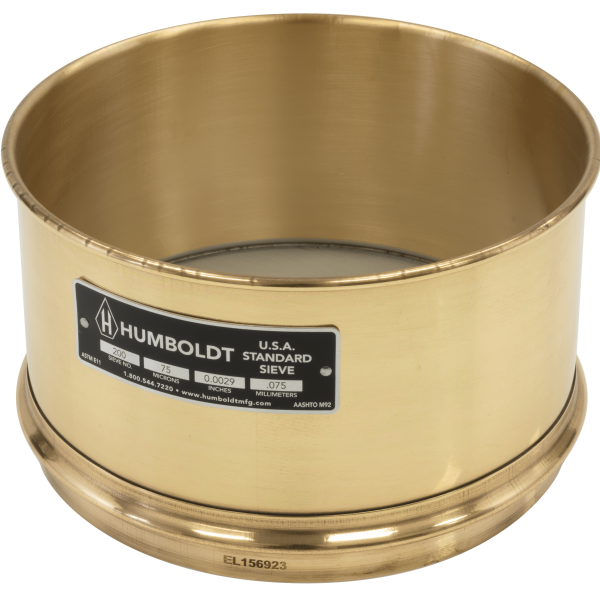

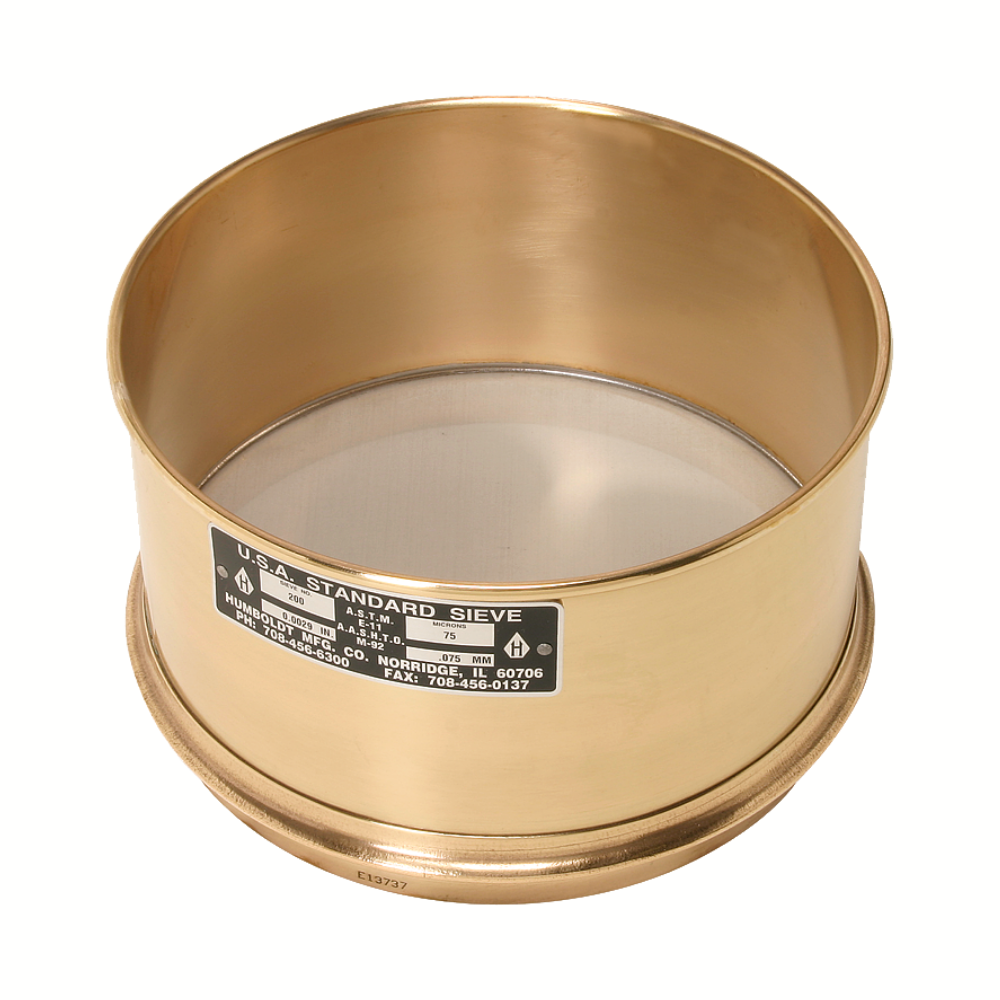

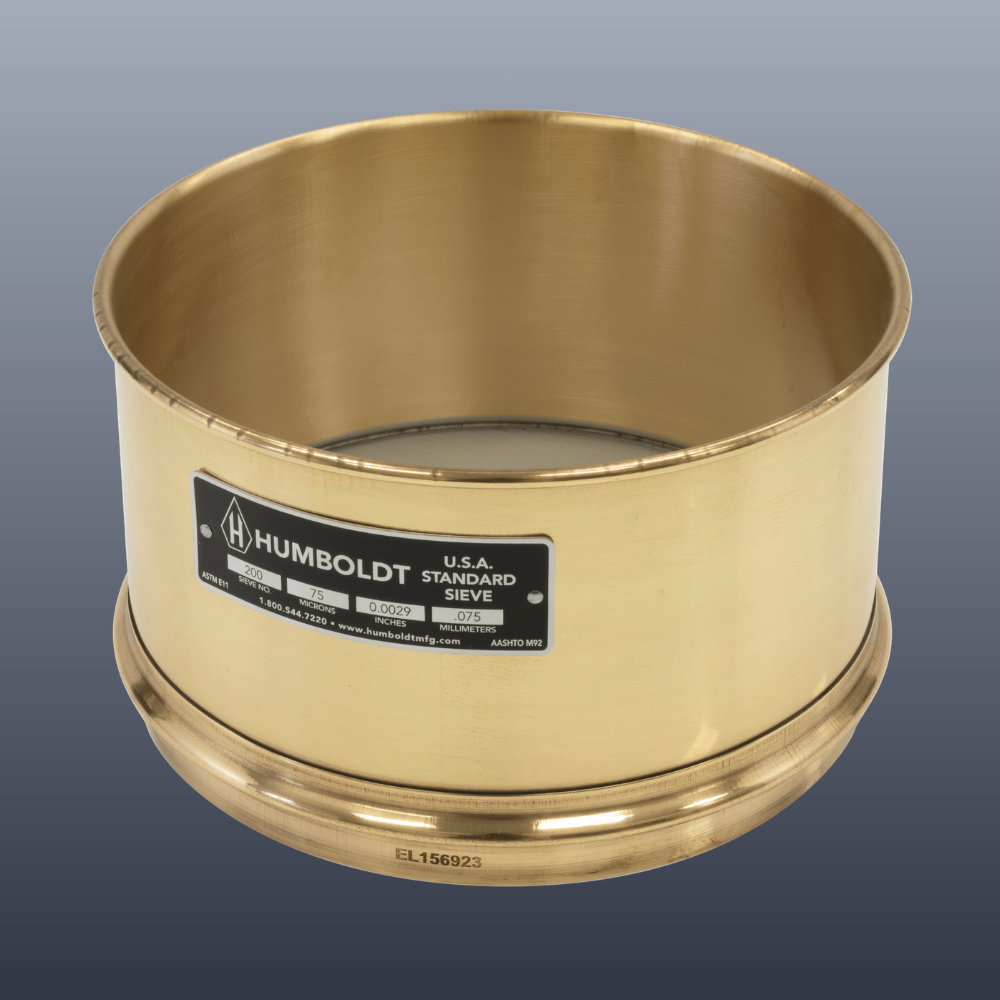

Humboldt Wet Washing Sieve | Stainless Steel Mesh | Deep Brass Frame | Fixed Mesh
ASTM D6913, AASHTO M92
Wet-wash sieves are used in the determination of fines content or to wash away fines when preparing samples for particle size testing. They are available in 8″ and 12″ diameters with depths of 4″, 6″ and 8″. Sieves are constructed of brass frames with stainless steel cloth. These sieves can also be ordered in almost any size mesh material, 20 mesh and finer; check with us for availability.
H-3945 – Wet Washing Sieve – Features:
- Diameter: 8″ (203mm)
- Depth: 4″ (102mm)
- Stainless Mesh, No. 200 (75µm)
- Brass Frame
- Fixed Mesh
ALTERNATIVE MODELS:
(Deep Frame Standard Sieve – Fixed Mesh)
OPTIONS (8″ Diameter)
- H-3945 – Wet Washing Sieve, No. 200 (75µm) Brass Frame, Stainless Cloth, 8 x 4″ (203 x 102mm)
- H-3946 – Wet Washing Sieve, No. 200 (75µm) Brass Frame, Stainless Cloth, 8 x 6″ (203 x 152mm)
- H-3947 – Wet Washing Sieve, No. 200 (75µm) Brass Frame, Stainless Cloth, 8 x 8″ (203 x 203mm)
OPTIONS (12″ Diameter)
- H-3928FS200 – Wet Washing Sieve, No. 200 (75µm) Brass Frame, Stainless Mesh, 12″ x 4″ (305 x 102mm)
- H-3929FS200 – Wet Washing Sieve, No. 200 (75µm) Brass Frame, Stainless Mesh, 12″ x 6″ (305 x 152mm)
- H-3938FS200 – Wet Washing Sieve, No. 200 (75µm) Brass Frame, Stainless Mesh, 12″ x 8″ (305 x 203mm)
